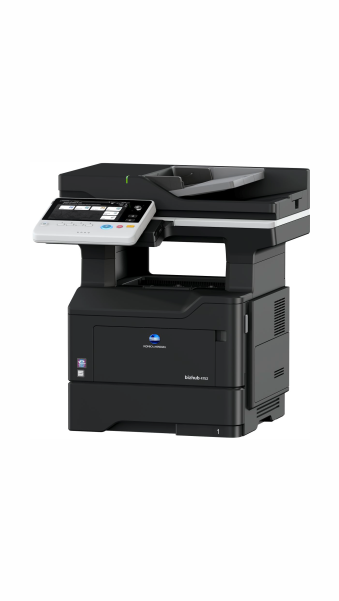

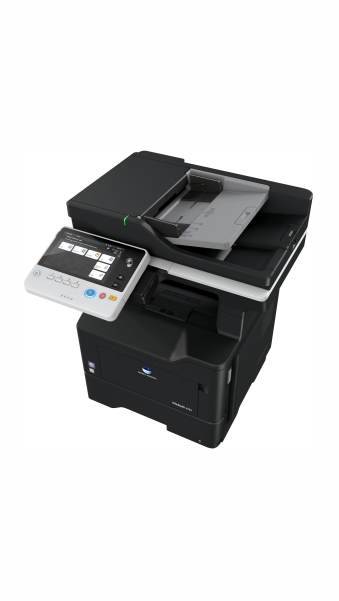

bizhub B4752

The bizhub 4752 is a valuable high-volume solution for today’s networked workflow – delivering up to 50 ppm B&W output and resolution up to 1200 dpi. The advanced Emperon print system and dual scan document feeder boost print/scan productivity and standard wireless and intuitive touchscreen operation enhance versatility. All that is packaged with a low-cost of operation to help reduce your expenses.

Highest data security thanks to various security functions that reduce the risk of data loss and keep confidential data safe

Key Features
  • Speed A4: 47 ppm in black & white
  • Paper formats: A6-A4 and custom sizes
  • Familiar and intuitive operation using a 7-inch colour touch operation panel similar to that found on Konica Minolta A3 devices
  • Dual-scan document feeder scans recto and verso of double-sided originals in one run
  • Highest data security thanks to various security functions that reduce the risk of data loss and keep confidential data safe

Functionalities

Print

Emperon™ print controller

Konica Minolta’s high-performance controller with support of PostScript3, PCL6, PCL 5e/c and XPS

Direct print

Driverless printing of PDF, XPS, DOCX, XLSX, PPTX, JPEG, TIFF, PS and PCL

Mobile Printing

Possibility to directly print documents from a mobile device

High print resolution

for best output quality

MyTab

Print driver customisation

Copy

Job preview

Illustrates selected copy functions on screen

Blank page removal

Automatic deletion of blank pages e.g. when copying mixed simplex and duplex documents

Card shot

Prints copies of the front and back of the original on the same page, e.g. for passport and other ID

High-performance document feeder

Fast scanning of originals with duplex document feeder

Copy Program

Registration of complete copy job settings for recurring jobs

Scan

Scan-to-Me/Home

Direct scan to own email address (Me) or SMB folder (Home) based on Active Directory information

Scan preview

Provides a real-time preview of scanned originals for checking before sending

Scan programs

Pre-setting of original, scan file and destination for regular scan jobs

Support of various scan formats

Including TIFF, PDF, Compact PDF, JPEG, etc.

Fax

IP-Fax

Sending of fax messages via network between Konica Minolta MFPs; supports colour as well as black & white

PC-Fax

Direct fax transmission from the PC

Fax forwarding

Forwarding of incoming fax documents by email or to SMB folder instead of printing

Box

Box function

Storing of print, copy, scan and fax jobs for recall to send and print – for frequently printed documents like brochures, forms, pricelists etc.

Personal, Group and Public

User access definition for different boxes

Sharing

Copying of documents from user box to user box

Online access

User box file access via web browser or box operator utility

Auto deletion

Automatic deletion of files stored in a user box after a predefined period

Security

Authentication

User access by password, user name + password, ID card or finger vein scanner

Data encryption

Encryption of data stored on hard disk and password protection for hard disk access

Network security

Support for SSL/TLS, HTTPS, 802.1x and IPsec

bizhub SECURE

Konica Minolta Security consultancy and MFP setup

Temporary data deletion

Copy, print, scan and fax job data are automatically deleted after job completion

Specifications

Copier Specifications

Toner technology Electrostatic laser
Copy/print speed A4 (mono) Up to 47 ppm
Autoduplex speed A4 (mono) Up to 33 ppm
1st copy out time A4 (mono) 6.5 sec.
Copy resolution 600 x 600 dpi
Gradation 256 gradations
Multicopy 1-9,999
Original format Max. A4
Magnification 25-400% in 0.1% steps; auto-zooming
Copy functions Electronic sorting; multi-job; adjustments (contrast, sharpness, image density); proof copy; interrupt mode; separate scan; sort/group; combination; original selection; ID card copy; 2-in-1; 4-in-1; 8-in-1

Printer Specifications

Print resolution 600 x 600 dpi; 1,200 x 1,200 dpi
Page description language PCL 6 (XL 3.0); PCL 5; PostScript 3 (CPSI 3016); XPS
Operating systems Windows 7 (32/64); Windows 8 /8.1 (32/64); Windows 10 (32/64);
Windows Server 2008 (32/64); Windows Server 2008 R2;
Windows Server 2012; Windows Server 2012 R2;
Windows Server 2016; Macintosh OS X 10.9 or later;
Linux; Unix; Citrix
Printer fonts 80 PCL Latin; 137 PostScript 3 Emulation Latin
Print functions Direct print of TIFF; XPS; PDF (v1.7) and OOXML (DOCX, XLSX, PPTX); secure print; proof print; overlay; n-up; booklet page order; watermark
Mobile printing AirPrint (iOS), Mopria (Android), Konica Minolta Print Service (Android), Konica Minolta Mobile Print (iOS, Android and Windows 10 Mobile); Mobile Authentication and Pairing (Android and iOS) optional: Google Cloud Print; Wifi Direct

Scanner Specifications

Scan speed (mono/colour) Up to 47/30 ipm in simplex
Up to 94/60 ipm in duplex
Scan resolution Up to 600 x 600 dpi
Scan modes Scan-to-eMail (Scan-to-Me); Scan-to-SMB (Scan-to-Home); Scan-to-FTP; Scan-to-HDD; Scan-to-USB; Scan-to-WebDAV; Scan-to-URL; Network TWAIN scan
File formats TIFF, PDF, Compact PDF, JPEG, XPS, PDF/A (opt.), Compact XPS, PPTX, Linearized PDF, Encrypted PDF
Scan destinations 2,100 (single + group); LDAP support
Scan functions Up to 400 job programs

Fax Specifications

Fax standard Super G3 (optional)
Fax transmission Analogue; i-Fax
Fax resolution Up to 600 x 600 dpi (ultra-fi ne)
Fax compression MH; MR; MMR; JBIG
Fax modem Up to 33.6 Kbps
Fax destinations 2,100 (single + group)
Fax functions Time shift; PC-Fax; fax forwarding; up to 400 program dials

System Specifications

Panel size/resolution 7” / 800 x 480
System memory (standard/max) 2 GB/4 GB
System hard disk 250 GB (standard)
Interface 10/100/1,000-Base-T Ethernet; USB 2.0;
Wi-Fi 802.11b/g/n (optional)
Network protocols TCP/IP (IPv4/IPv6); SMB; LPD; IPP; SNMP; HTTP; HTTPS
Automatic Document Feeder Up to 50 originals; A6 – A4; 52 – 120 g/m²;
automatic dualscan document feeder
Printable paper size A6 – A4; customised paper sizes
Printable paper weight 60 – 216 g/m²
Paper input capacity (standard/max) 650 sheets/2,300 sheets
Paper tray input (standard) 550 sheets; A6 – A4, 60 – 120 g/m²
Paper tray input (optional) 3x 250/550 sheets; A5-A4; 60-120 g/m²
Manual bypass 100 sheets; A6 – A4; custom sizes; 60 – 216 g/m²
Automatic duplexing A4; 60 – 90 g/m²
Finishing modes Group/sort; staple (optional)
Output capacity (standard) Max.: 250 sheets
Stapling Max.: 20 sheets
Copy/print volume (monthly) Rec.: 7,000 pages
Max.: 150,000 pages

If the maximum volume is reached within a period of one year, then a maintenance cycle must be performed

Toner lifetime 25,000 pages
Imaging unit lifetime 60,000 pages
Power consumption 220 – 240 V/50/60 Hz; Less than 660 W
System dimension (WxDxH) 490 x 521 x 546 mm
System weight Approx. 24 kg (without options)

System Features

Security ISO15408 Common Criteria (in evaluation); IP filtering and port blocking; SSL2; SSL3 and TLS1.0 network communication; IPsec support; IEEE 802.1x support; user authentication; secure print; Kerberos; hard disk overwrite (8 standard types); hard disk data encryption; copy protection (print only)
Accounting Up to 1,000 user accounts;
Active Directory support ID card authentication optional
Software PageScope Net Care Device Manager; PageScope Web Connection; Print Status Notifi er; Driver Packaging Utility
